DESTACO

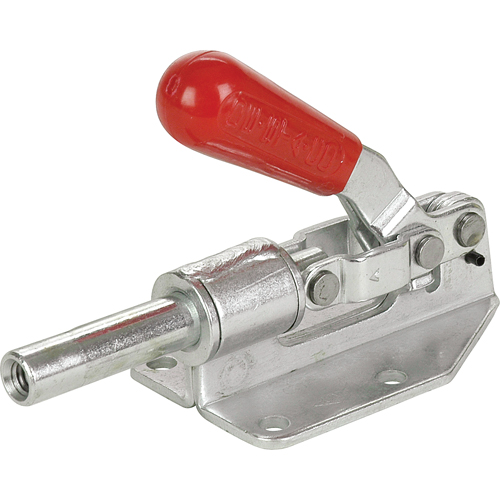

Straight Line Clamps - 609 Series, 1-1/4" (31.75 mm) Capacity, 300 lbs. Clamping Force

Model: TN107

Mfr. No.: 609

  • Straight Line Clamps - 609 Series, 1-1/4" (31.75 mm) Capacity, 300 lbs. Clamping Force Par Equipment

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Clamping Capacity

1-1/4" (31.75 mm)

Clamping Force

300 lbs.

Dimensions" A

3.375

Dimensions" B

4.4375

Dimensions" C

31/32

Base L" X W"

3 9/16 x 2 3/16

Weight

0.88 lbs.

  • Popular in assembly operations or used in conjunction with welding jigs. Straight line clamps provide quick, strong holding force. Most clamps lock in two positions allowing them to be used as a push or pull clamp. These models can be bolted or welded to a flat surface. Plungers extend out to clamp material against a fence or square surface. Model TN103 includes a 8-32 nylon spindle assembly (TN126). Model TN105 plunger is tapped for 5/16-18 adjustment spindle (not provided). Model TN107 plunger is tapped for 5/16-18 neoprene tip or other custom fixture.
