FLIR

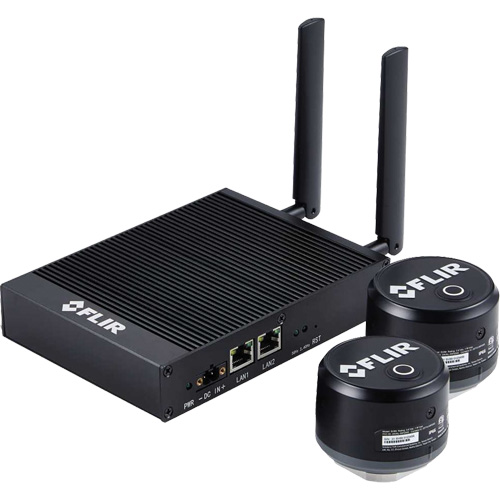

SV88™ Vibration & Temperature Monitoring Kit

Model: ID101

Mfr. No.: SV88-KIT

  • SV88 Vibration & Temperature Monitoring Kit Par Equipment

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Manufacturer's Warranty

  • 3 Years

AC Input

100 V to 240 V AC, 50/60 Hz (Optional)

Capture Rate

Configurable: 1 min (min.) - 1 day (max.)

Frequency Range

Up to 50 m (160 ft)

Sensitivity Range

± 16 g

Temperature Range

-20°C to 80°C (-4°F to 176°F)

Vibration Analysis Data

Grms, Vrms (ISO10816), Peak, Crest Factor, Kurtosis, Skewness, Standard deviation, FFT

Battery Life

Min. 2 Years (Subject to Sampling Rate & Installation Environments)

Standard(s) Met

ETL, FCC, IC, CE, UKCA, RCM

Country Of Origin

Taiwan

  • Helps you monitor critical equipment by continuously analyzing vibrations from rotating equipment, detecting faults, and alerting you to potential defects and future problems
  • With its multi-communication protocols, rugged, IP66 rating and wireless capability, the SV88 Vibration Monitoring Solution Kit allows you to make critical data-driven decisions that alert you to potential issues to aid in extending the life of your valuable assets
  • Get comprehensive insights to identify patterns, trends, potential failure modes, and the severity of detected issues in your equipment - averting costly downtime
  • Wireless capability enhances installation flexibility, enabling easy deployment in a range of industrial environments
  • Web based GUI for accessing vibration data, deploying sensors, and managing integrations, all performed on Gateway, ensuring you have complete control over your vibration solution
  • The SV88 seamlessly integrates with advanced analysis tools through multi-communication protocols such as Modbus, MQTT, and OPC UA
