LEO

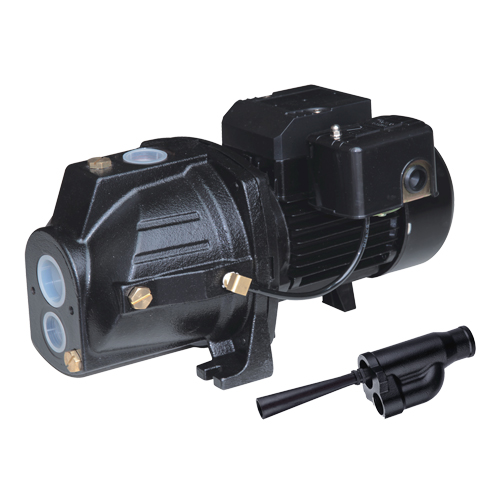

Dual Voltage Cast Iron Convertible Jet Pump, 230 V, 920 GPH, 1 HP

Model: DC664

Mfr. Model No.: UDPM100-1

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

  • Motor: 1 HP
  • Max. Flow Rate: 920 GPH
  • Voltage: 230 V
  • Suction Head: 198'
  • For use on shallow well applications up to 25ft water level
  • If deeper than 25ft., the pump can be easily converted to deep well operation (deep well pump, 25-80ft water level)
  • Durable cast iron pump body
  • Built-in automatic thermal overload protection
  • Dual voltage motor (115/230V), factory wired for 115V
  • Ejector is included for deep well usage
  • 1-1/4" NPT suction and 1" NPT discharge
  • Certified for sale in Canada by an accredited certification body
  • GPH at 40 psi discharge pressure: 0ft:1460GPH, 50ft:1410GPH, 100ft:920GPH, max. pressure shutoff 140ft.
